description

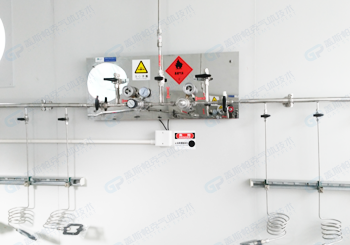

Gastech ? Auto-switchover panel
Industry application
The product is widely used in semiconductor and electronic industry, medical treatment, gene technology, biopharmaceuticals, scientific research and other fields.
Automatic switching is an open disk, which is used to control the transportation of ordinary, inert and bulk gases.
The centralized gas supply system used is very suitable for selecting automatic switching disk.
Product characteristics
■ SUS316 mirror panel for disk
■ SuS316 seamless stainless steel pipe is used for all pipe fittings. The first-class of the brands such as Valex and KUZE are selected.
■ Main valve fittings are all from APtech, Parker, Potarex and other international first-class brands.
Standard configuration
■ With inert gas purge, automatic emergency remote cut-off, accident alarm, leakage alarm docking.
■ Flammable and explosive gases can be purged with inert gases.
■ Low pressure alarm, L side R side main air supply optiona.
■ Explosion-proof cabinet (optional), coated with paint or stainless steel shell.
■ Each disk configuration: manual diaphragm valve, pneumatic diaphragm valve (ball valve optional) pressure gauge, pressure sensor, pressure relief valve, one-way valve, filter, safety valve, etc.
■ It is convenient to reserve expansion points and integrate confluence rows.
■ Continuous monitoring pressure of gas.
The benefits of the automatic switching system:
The system is easy to be operated and reliable in performance.
Automatic switching without any operation of the operator.
Continuous supply gas, alarm with sound and light if the pressure too low.
The automatic switching cabinet adopts fully enclosed metal box, which has strong anti-interference ability.
Electromagnetic Switch Control.
Signal lamp indicating working status
